- 10mm Basswood Cuts in One-PASS by 20W Highest Power Diode Laser
- Up to 400mm/s Working Speed to Increase Your Productivity
- Finer Details by Ultra-fine Compression Spot
- Higher Accuracy and Stability by Durable Mechanical Structure
- Compatible with LightBurn and 3 Types of Connection(USB,WIFI,TF card)
- Auto-Stop if detects Flame/Moving or Tipping for Extra Safety
Specification:
Type: xTool D1 Pro-20W
Machine Power: 120W
Laser Electric Power: 84W

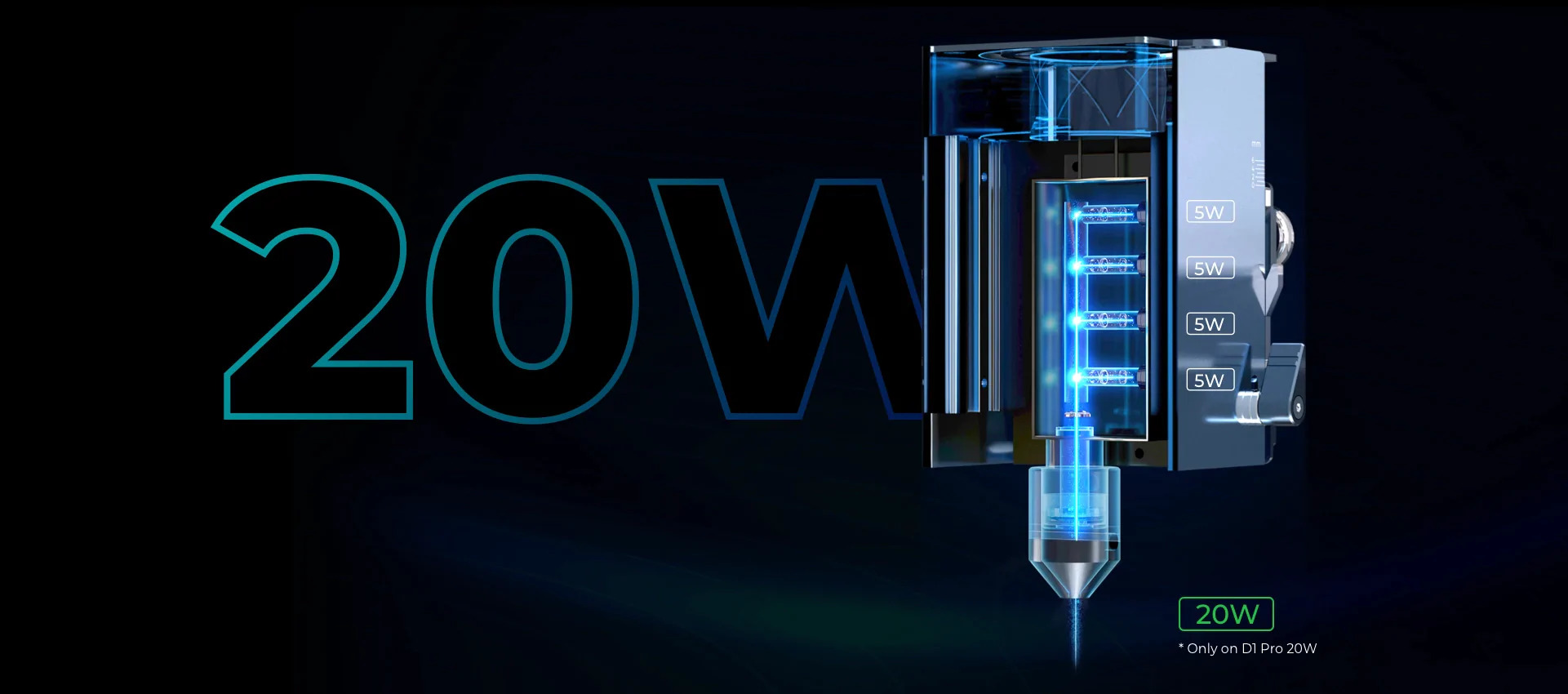

Laser Module Output Power: 20W
Laser Spot: 0.08*0.10mm
Routing Speed: 400 mm/s
Working Area: 430 * 390 mm (16.93 * 15.35 inch)
Max. Workpiece Height: 50 mm (2 inch)
Max. Workpiece Height with X risers: 50mm+X*45mm(each set riser height column)
Connecting Interfaces: USB/Wi-Fi/TF Card
Certification: FCC / FDA / CE
Operating Systems: Windows/macOS/Android/iOS
Control Software: xTool Creative Space / LightBurn
File Type(s): SVG/DXF/JPG/JPEG/PNG/BMP/TIF/CR2, etc.
Features:
Limit Switches Auto-Identifying Boundaries in All Directions
- Limit switches on both the X and Y axis can accurately locate the working coordinates of the laser head, updating you on the processing progress in software.
Super powerful 20W laser beam oxidizes the metallic surface in an instant, bringing vivid colors to the engraved metal.
- The color of the metal engraving will no longer be limited to black/grey. Your creativity will be brought to the next levels with 340+ colors.
Instant Stop when machine detects flames
Instant Stop when machine is moving or tipping
Compatible with Software of All Levels,Quickly Started with xTool Creative Space
Compatible with mature engraving software: LightBurn
- The layout, editing, and control software for common laser cutter. Engraving file format supports NC, BMP, JPG, PNG, DXF, etc.
Details Matter:
1. Minimize Lens Pollutions by Optimizing Air Outtake
New structural design of the light shield prevents laser lenses polluting by smoke and reducing dust accumulations inside the shield.
2.Large Engraving Area
A large working area of 430*390 mm ( 17*15.4 inch ), more than the size of A3 paper, allows you to engrave more patterns at once. Easy to use and more efficient.
Package Include:
1 x xTool D1 Pro 20W Machine
8 x Raisers
1 x RA2 pro Rotary Roller
