High Accuracy Laser Cutting & Engraving Machine
Adopted industrial grade structural design, xTool D1 Pro's processing accuracy reaches 0.01 mm incredibly. With 0.08*0.06mm ultra-fine compressed laser spot, xTool D1 Pro always shows the best details whatever in engraving or cutting.
Ultrafine Lines with Compressed Spot Tech
Smaller laser focus (from 0.15*0.15mm to 0.08*0.06mm) makes impeccable details, thanks to compresssed spot tech
Improve The Accuracy to The Extreme
100% Duplicate and Reprint Your Design
Better Laser Enhances Cutting & Engraving Effects
Better Software at Your Service
Get started quickly with our user-friendly software: XCS
Updating Project Files
Batch Processing with Circular Array
Default Working Parameters for Materials
Compatible with mature engraving software: LightBurn
The layout, editing, and control software for common
laser engraver. Engraving file format supports NC, BMP, JPG, PNG, DXF, etc.
Safe to Use
The emergency stop will be triggered by the detection of flames, smoke and tipping.
Details Matter
New Protective Design for Laser
New structural design of the light shield prevents laser lenses polluting by smoke and reducing dust accumulations inside the shield.
Large Engraving Area
A large working area of 430*390 mm ( 17*15.4 inch ), more than the size of A3 paper, allows you to engrave more patterns at once. Easy to use and more efficient.
The Risers
Use additional risers (sold separately) to increase the height of xTool D1 Pro to facilitate the engraving of higher objects(use 2 sets to increase height to 140mm). Customize your skateboard or basketball to make them cooler.
Just Connect
You can transfer data via Wi-Fi, USB cable, a large capacity TF card (Offline Use) and use xTool D1 Pro anytime and anywhere.
Genius Ideas from xTool Fans
xTool D1 Pro Specification:
- Type: xTool D1 Pro-10W
- Machine Power: 60W
- Laser Electric Power: 40W
- Laser Module Output Power: 10W
- Laser Spot: 0.08*0.10mm
- Routing Speed: 400 mm/s
- Working Area: 430 * 390 mm (16.93 * 15.35 inch)
- Max. Workpiece Height: 50 mm (2 inch)
- Max. Workpiece Height with X risers: 50mm+X*45mm(each set riser height column)
- Connecting Interfaces: USB/Wi-Fi/TF Card
- Certification: FCC / FDA / CE
- Operating Systems: Windows/macOS/Android/iOS
- Control Software: xTool Creative Space / LightBurn
- File Type(s): SVG/DXF/JPG/JPEG/PNG/BMP/TIF/CR2, etc.
xTool D1 Pro 10W Features:

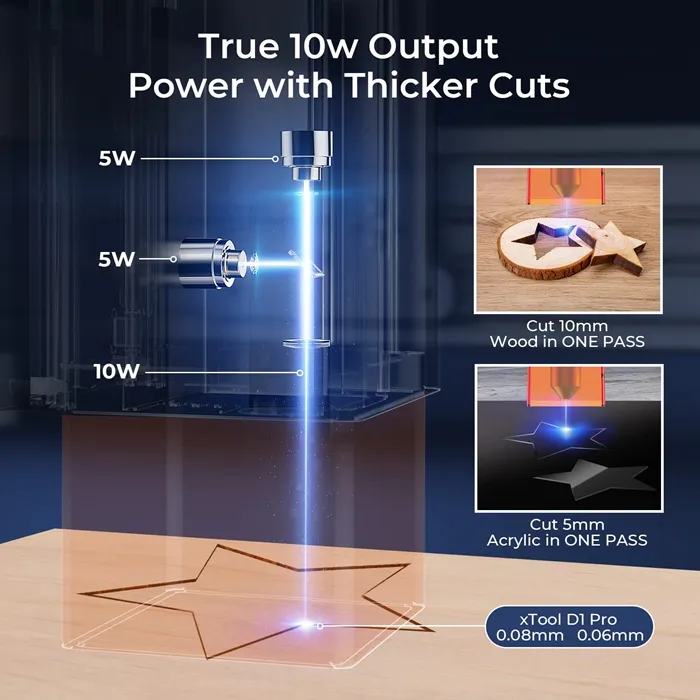

- 1. The xTool D1 Pro laser engraver has 60w machine power and 10w output power. Combining 2 laser beams into 1, D1 Pro laser engraving machine is capable of cutting a 10mm wood board and a 5mm black acrylic board in ONE PASS, and at a speed up to 240000mm/m.
- 2.The xTool D1 adopts a 0.08mm*0.06mm ultra-fine compression spot, paired with excellent laser engraving technology, resulting in detailed, vivid engraving images and clean, smooth cutting surface with fewer burn marks. You can direcrly engrave on wood, stainless steel, glass and more.
- 3. Made of aluminum alloy and steel, xTool D1 Pro 10W has a sturdy structural design that can easily withstand a 200 LB adult's weights on it, provens stability and high acuracy(0.004 inches) even working at the highest speed. Built with Industrial grade robust design, D1 Pro has 3 X longer lifetime than ordinary laser cutting machines.
- 4. Super powerful laser beam oxidizes the metallic surface in instant, bringing vivid colors to the engraved metal. The color of metal engraving will no longer be limited to black/grey. Your creativity will be brought to the next levels with 340+ colors.
- 5. Adjust focus in 3 seconds with focal length setting bar. 4 limit switches are installed on D1 Pro 10W to locate the laser head and alet you the 4 boundaries if the laser head about to hit them. Easy to start DIY with xTool Creative Space software. Designed for starter, XCS has FREE sample projects, design materials and fonts, as well as default parameters for commonly used materials. xTool D1 Pro is also compatible with Lightburn for more advance functions.
- 6. Equipped with flame sensor and acceleration sensor, xTool D1 Pro will stop processing automatically if the machine detects flames or moving/tiping.
Package of xTool D1 10W Include:
- 1 x xTool D1 Pro 10W Machine
- 8 x Raisers
- 1 x RA2 Pro Rotary Roller
