Ultra-thin 5W, 10W, 20W three laser options: S30 series adopts ultra-thin laser shaping technology, the laser focus is as thin as hair, very powerful for engraving or cutting. S30 5W laser is high cost-effective and can meet 90% of hobby needs; S30 Pro 10W laser is suitable for frequent cutting, do everything faster; S30 Pro Max 20W pursues the ultimate cutting speed, suitable for professionals, shops or factoriy.
Replaceable protective lens: S30 series laser adopts innovative replaceable lens, which greatly improves the service life of the laser, which is more than 10 times longer than other general lasers. When the lens is damaged or after long-term use, the lens can be replaced to restore the cutting power. A free lens is included with the purchase, more lens can be easily purchased from SCULPFUN.
Expandable engraving area on both XY axes: The S30 series adopts an innovative XY axis expandable design, the original engraving area is about 400x400mm, but you can purchase a Y-axis expansion kit to expand the engraving area to 935x400mm; purchase an XY-axis expansion kit to upgrade Up to 935x905mm huge engraving area, which can help you better handle large area engraving or cutting work.
Automatically controlled air assist system:
The traditional adapter air assist will always be turned on and cannot be controlled during engraving, and the engraved pattern will be smoked into a fuzzy fog. The S30 series is equipped with an airassist 32-bit motherboard and a control-type air pump, which can intelligently control the air-assist switch during engraving through the LightBurn software M8 button, this makes the engraving and cutting very clean, and is very suitable for the manufacture of exquisite gifts.
Sturdy and durable frame: The S30 series is made of high-strength aluminum alloy, its frame can bear up to 50KG weight without damage, and is very durable. The frame can be used for a long time and maintain high precision, only need to upgrade the latest laser when the machine needs to be upgraded.
Safety design: The presented A4 size steel pad can well protect the table from laser damage. Isolate fire hazards. There is a very safe and eye-catching power switch on the machine, you can directly and quickly turn off the power in an emergency.
Right-angle measuring ruler: There are precise scale lines on the X-axis and Y-axis to form a right-angle measuring ruler, which is convenient for you to quickly measure the size of the engraved object. The 410x400mm large-area engraving range can meet your various engraving needs.
Built-in high pressure air assist nozzle: S30 series is equipped with advanced high-pressure air-assisted metal nozzle, which can generate high-pressure airflow under the air pump, greatly improving the cutting efficiency, and the cutting speed is more than 5 times faster than that without air assistance. The powerful airflow blows away the residue, making the cut surface very clean.
Detachable laser eye shield: The S30 series is equipped with a detachable eye shield, which will not dazzle even without glasses. Also if you don't need it, you can easily disassemble it.
Engraving/cutting materials: Engraving material: all kinds of wood (including walnut, cherry and other highDensity wood), MDF, z1gzag, cardboard, plastic, leather, PCB board, aluminum oxide, 304 stainless steel, ceramic, dark stone
Cutting material: all kinds of wood (including walnut, cherry and other high-density wood), MDF, acrylic board, cardboard, non-woven, bamboo, leather, some plastic boards, PCB boards
There are many upgrades for the Sculpfun S30 pro, all of which can be purchased separately.
Laser Information:
Diode laser output power: 10W (note that this is light energy not electrical energy)
Laser focus: 0.06x0.08mm
Laser wavelength 455±5nm
Focusing method: fixed focus column + sliding device
Laser protection cover: Equipped with a detachable laser protection cover to protect the eyes. You can adjust it up and down, or remove the goggles.
Machine Information:
Engraving accuracy: 0.005mm
Engraving area size: the standard version is 410*400mm, which can be expanded to 935x400mm or 935x905mm
Machine power: about 120W
High-Speed Air Assist Nozzle
With advanced fluid mechanics design, which can better utilize of air pressure, eject a high speed airflow up to 13.5m/s when combined with the use of our equipped air pump for faster and cleaner cuts.
Limit Switche for Homing
S30 series come with XY limit switche to achieve homing or postioning function.

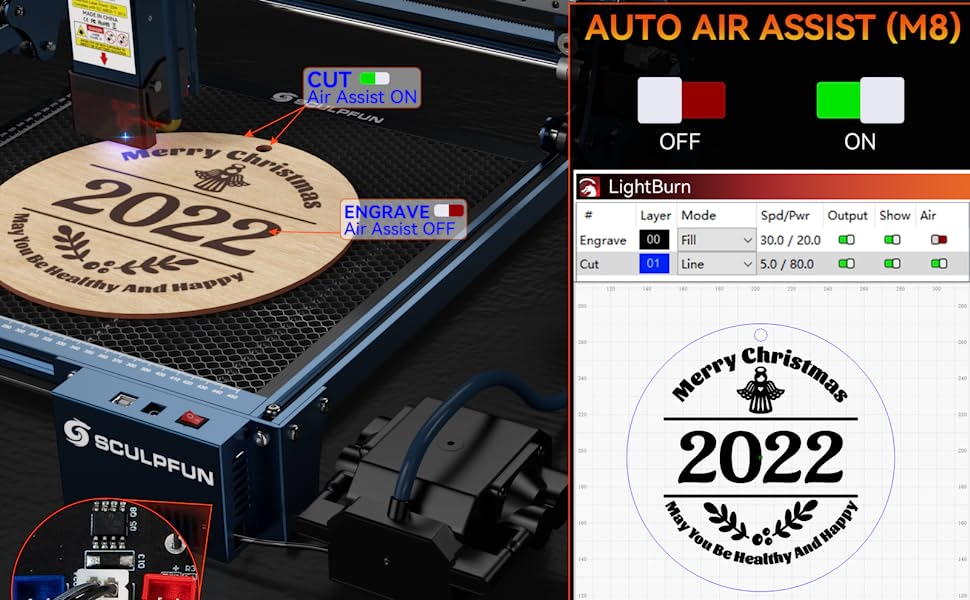

Automatically Controlled Air Assist System
SCULPFUN air assist can be directly connected to the machine motherboard and can be automatically and intelligently turn on and off according to different engraving or cutting modes, unlike others which require a connection outlet and can only be switched on and off manually.
Longer Service Life
When the lens is damaged or after long-term use, the lens can be replaced to restore the cutting power, greatly improve the service life of the laser, more than 10 times higher than the service life of other general lasers.
Industrial-grade cutting accuracy
S30 series adopts extremely solid and high-precision linear slide rail X-axis, making it reach industrial-grade engraving accuracy. When comparing small engraving details, the S30 series does not have the wavy pattern that appears in ordinarylaser engraver.
S30 pro packing list
1×S30 Po Max laser
1× Laser Repair Kit
1×12V automatic air pump
3 x A4 size 3mm wooden board
2×Limit Switch
1×24V 5A power adapter
1 x power cord
1×USB cable
1× Air tube
1× Installation Tool Kit
1× Laser Goggles
1 x A4 metal backing plate
Review List
Good Valued
Tom Sten
I am satisfied with the performance of Sculpfun S30 Pro. This is a nice upgrade for my 5W laser engraver. Not only does it have a more powerful laser, but the air assist is finer for lines and cuts faster and cleaner.
K.L
I have used LaserGRBL software for a long time and this Sculpfun S30 Pro works great with LaserGRBL. As it stands, LaserGRBL works fine.
Jacob Riv
Overall, this is a powful laser engraver ,which is capable of many home and shop creations.
