SCULPFUN S9 Laser Engravers CNC Laser Cutting Machine for Wood Acrylic Metal

Price:	$409.99
Availability:	In Stock
Order Now:	Free Shipping

Free Shipping

Fast free shipping, shipping in 2-7 calendar days.
30-Day Return

Returns within 30 days of delivery, simply exchange.
12-Month Waranty

12-Month international warranty from the original purchase date.
Expert Customer Service

24/7 Friendly email and chat support to help with all your questions.

Sculpfun S9 Laser Engraving Machine Description

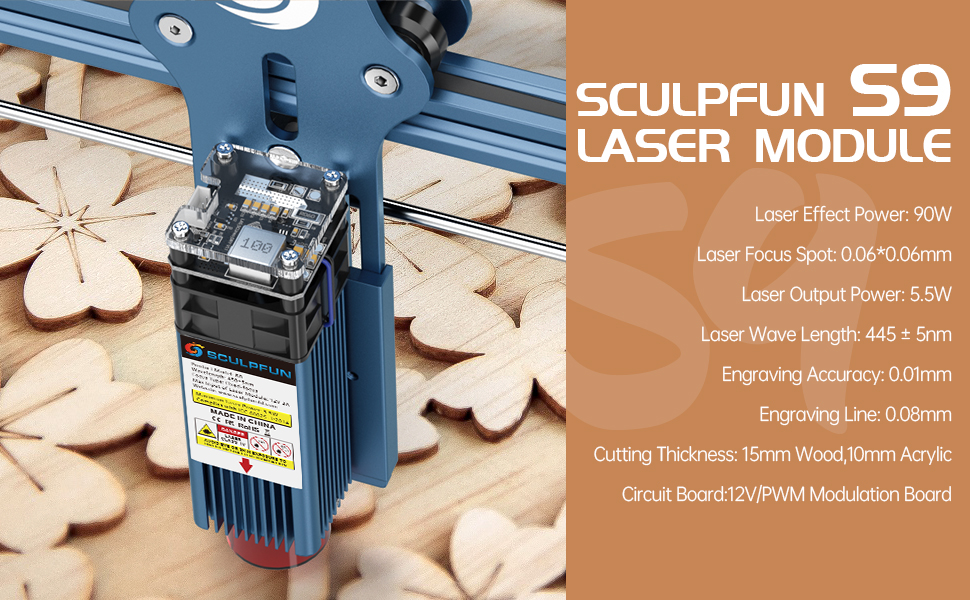

90W Effect Laser Beam Shaping Technology:

Sculpfun S9 laser cutter uses the latest 5.5W laser beam shaping technology diode laser, it has an ultra-fine 0.06mm sharp laser focus, with super cutting penetration and precision, he can cut up to 15mm thick wood, 10mm acrylic, directly engrave ceramics and 304 stainless steel, this is almost beyond the effect of 90W CO2 laser.

More Detail

Structure Details

The full-metal structure design makes the machine extremely solid, and it improves the accuracy of engraving; The structural frame is very durable and remains open to upgrade. During use, you can keep the frame and replace with other new lasers. Or replace longer metal beams to expand the engraving area.

Easy to Assemble

Like the Sculpfun S6 Pro, the Sculpful S9 laser engraver also comes with good assembly instruction manual which Is easy to Assemble, Includes detailed installation instructions and video, it only takes a few steps to complete the assembly.

Convenient Measuring Ruler

Convenient Measuring Ruler X-axis and Y-axis are engraved with precise scale lines for quick measurement of engraved or cut objects.It also quipped with a power switch to easily turn on, or turn off the laser cutter in case of emergency.

Large Working Area

Large Working Area The 410x420mm large working area can meet needs of small or large engraving and cutting. You can also add longer metal beams to expand the engraving area, for example: 410mm*2000mm.

Long Service Life

Using the latest technology, it has been repeatedly tested, optimized and upgraded to efficiently handle complex commands for precise engraving and deep cutting. Improved motherboard and wiring for longer life.

Eye protection design

The laser filter filters 98% of UV light into your eyes. You and those around you can watch laser engraving without goggles. It also prevents animals from catching the laser spot.

Steel Pad for Protection

The included A4 size steel pad protects the table from laser damage. Isolates fire hazards. The sculpfun S9 laser engraving machine is equipped with a very convenient power switch, which is not available in others. Fixing holes are reserved on the four feet and the body structure to facilitate fixing the machine and the data cable.

Fast Focusing Design

Sculpfun S9 has the fastest focus design. The S9 laser combines a fixed focus lens and a sliding design. You only need to slide the laser and tighten the screws to complete the focusing. This makes it very easy to use the laser .

Wide Compatibility

This laser engraver is compatible with various mature carving software, such as LaserGRBL, LightBurn, Benbox, GrblController, LiteFire, supports PWM mode carving, supports Windows system, Apple system (LightBurn), carving file formats Support JPG, PNG, DXF, SVG, G- code, NC, BMP, etc.

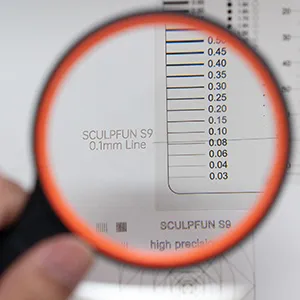

Ultra-thin Engraving Line

Professional test pattern and film ruler show that the S9 laser engraving line is only 0.08mm, thinner than a hair. It means that the S9 has higher and more accurate engraving, clearer texture, more detailed and beautiful patterns.

Sculpfun S9 Laser Specifications

Item model number	SCULPFUN S9
Engraving size	410*420mm
Laser effect power	90W
Diode laser power	5.5-6W
Laser wave length	455±5nm
Engraving accuracy	0.01mm
Focusing method	fixed focus laser, no need to focus
Data transmission method	USB connection
Cutting material	wood, acrylic, cardboard, fabric, bamboo, plastic board, KT board

Power supply	International universal standard power input: 100-240V AC, 50/60HZ output: 12V 5A
Equipment net weight	3.0kg
Package weight	4.4kg
Packing size	615345130mm
Certification	CE FCC RoHS FDA IEC
Operating software	LaserGRBL, LightBurn, LaserGRBL, LightBurn, Benbox, GrblController, LiteFire
Engraving materials	wood, paper, cardboard, plastic, white, PCB board, aluminum oxide, 304 Stainless steel, ceramic，dark stone

SCULPFUN S9 90W Packing List:

1× X axis assembly	1×laser module set	2× belt	1× brush
2× X shaft	1×12V 5A power adapter	1× T-shaped M5 screwdriver	1× Laser goggles
2× Y shaft	1×power adapter	1× L-shaped M4 screwdriver	1× 10x10cm wood chip 3mm thickness
1×control box module set	1×USB cable	1× L-shaped M3 screwdriver	1× 10x10cm wood chip 10mm thickness
3×support feet	Step 1~5 Screw installation package	1× 8-10mm nut wrench	1× A4 size steel desktop protection pad
10×Tie

Note:

For detailed machine instructions, please refer to the manual for parameter settings.
When operating the laser engraving machine, please install the laser protective cover. If it is not installed, you need to wear goggles.
Please do not touch the laser emitter with your hand, or it may burn your hand.
Please avoid strong impact on the machine.
Children under 14 are not allowed to use this product and children over 14 need adult supervision.
The light engraving machine can not be directly applied to any mirror reflecting object, which may cause injury to the operator or burn the laser.

Review List

Verified Purchase

Paul-hrry

I bought the Sculpfun s9 because I'm on a tight budget. The laser engraver is easy to assemble and connects easily to a PC using the free Laser RGBL engraving software. It's quality is more than it's worth, and if it's not dealing with very strong materials, I think it can meet basic needs.

Fivanvvian

A worthwhile investment, the Sculpfun s9 laser engraver is very friendly and easy to use, the quality of cutting and engraving is impressive, my friend is planning to get one too

Michael

I love the sculptfun s9. I had a different brand before this, but that one didn't work very well, I prefer this one, it's good enough for my needs.

Meow X.

The product is well packaged and the assembly is simple, much easier than I expected, I encountered a little trouble during the operation, but I think this is mainly my problem, HTPOW customer service patiently helped me solve this problem . Sculpfun S9 works great, recommended.

Martin

I tried a bunch of different materials, from wood to metal and even plastic. I engraved a small pattern on a piece of wood and the result was very beautiful, the speed of the laser and the power of the laser have a great influence on the result of the operation, so it is very important to choose the correct operation parameters. For engraving and cutting thin materials, customer service recommends using 20%-80% power and average speed. For thicker materials, customer service recommends using 100% power and higher laser speeds.
